Live site data encoding, multiple channel Full HD/SD encoding, support H.264/AAC encoding, support RTMP streaming to Flash server

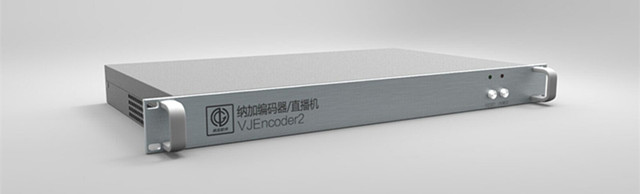

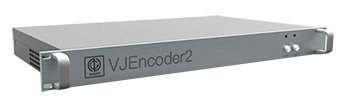

• 1U Rack-mounted chassis design, can be on a standard rack.
• High density coding, can support 4 Full HD or 6 SD signs.
• Support H.264/AAC codec, up to 1080p
• Each channel code is supported by the main and sub stream; bitrate coding parameters of the main and sub stream can be set independently, and support up to 1080p.
• Graphic size and frame rate of encoding output can be adjusted; support the ‘deinterlace’
• Automatic recognition of the video input signal format, no need manual settings.
• Each main stream or sub stream is supported to push to 2 broadcast servers simultaneously.
• Support RTMP protocol pushing to Flash server (FMS/Wowza/VJMS3).
• H.264 support ABR/CBR/CQP mode, support baseline/-main/high specification,support 1.0-5.2 level,code bitrates range from 0kbps to 30mbps and support low delay coding.
• AAC support MPEG2/MPEG4 version, support MAIN/LOW/SSR/LTP complexity, code bitrates range from 10kbps to 256kbps, support RAW/ADTS of the output format.
• Gigabit network interface; support remote WEB management and reset to defaults.

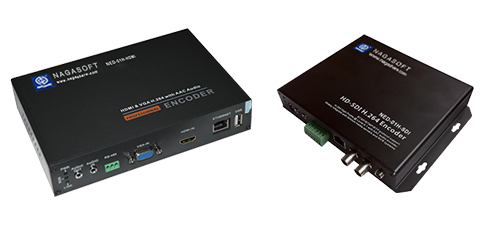

• Low power embedded design, easy to install and use, easy to maintain.
• Support single channel HDMI/VGA/SDI coding.
• Automatic recognition of the video input signal format, no need manual settings.
• H.264 High Profile@ level 4.1 encoding, less than 50ms encoding delay.
• Support adjustable coding rate and controllable frame quality
• Support image enhancement and fault tolerance technology, strong error resilient capability, with the industry’s best image and sound performance.
• AAC-LC high fidelity audio coding, support G.711 Audio Encoder.
• 1 analog audio input /1 analog audio output, support two-way voice intercom function.
• 1 RS-485 serial control interface, support PTZ control and remote control of remote decoder/PC .
• Meet the standard of RTP/RTSP/RTMP/TS media transfer protocol, can be used with the majority of decode products and streaming media server in the market.
• Provide 1.1/2.0 ONVIF standard management & control protocol, can be integrated automatically with the IP monitoring system.
• Support Pelco-D /Pelco-P/Sony VISCA PTZ Control.
• Web based interface, support online real time video preview
• Support to reset to defaults.
